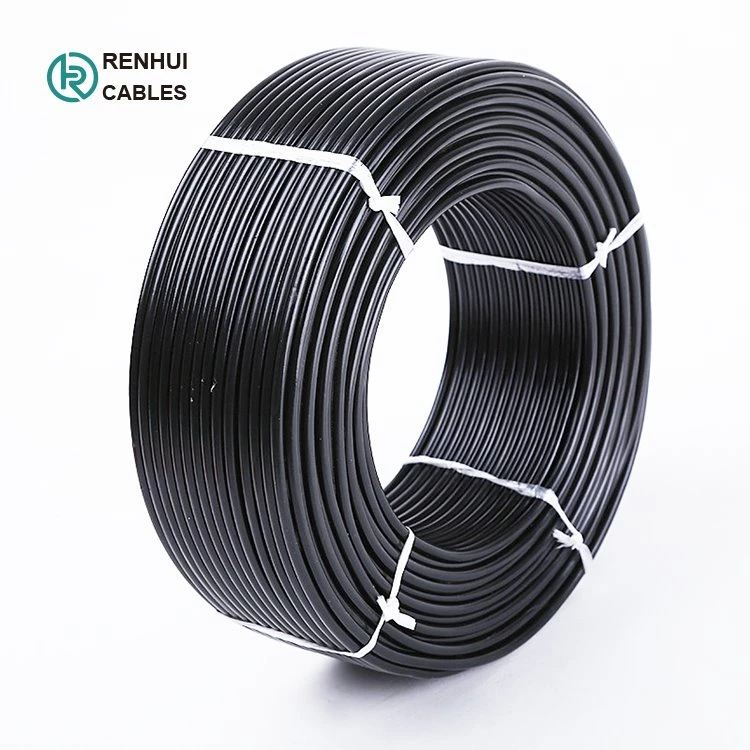

H05V-U kabeli
video
H05V-U kabeli

H05V-U kabeli

1.PVC izolyatsiyalangan sim, olovga chidamli
2.Binolar, tunnellar, texnik jihozlar xonalari va boshqalarda halogensiz va yong'inga chidamli uskunalar komponentlari uchun.
3. Nominal kuchlanish U0 / U 450/750V
4. Umumiy maqsadlar uchun bir yadroli PVX izolyatsiyalangan qoplamasiz kabellar
So'rov yuborish
Hozir chat
Katalog yuklab olish
Idoralar sertifikati - Renhui
ISO9001-Renxuy
Ta'rif

1.Ilova
Jihozlarning ichida va yoritish moslamalarida yoki ichida qattiq himoyalangan o'rnatish. Sirtga o'rnatilgan yoki ko'milgan quvurlarga o'rnatish uchun javob beradi, faqat signalizatsiya yoki boshqaruv sxemalari uchun.


2.Operatsion xususiyatlari
Supero'tkazuvchilarning maksimal ish harorati: ortiqcha 70 daraja
Ruxsat etilgan o'rnatish uchun eng past muhit harorati (statik): -30 daraja
Oʻrnatishning eng past harorati (egiluvchan): -5 daraja
Qisqa tutashuvli o'tkazgichning maksimal harorati: ortiqcha 160 daraja
Sinov kuchlanishi 50Hz: 2000V
Olov tarqalishi: IEC 60332-1-2
Minimal bükme radiusi: 4 x simi diametri


3.Qurilish

Dirijyor

tavlangan mis,
1-sinf qattiq (H05V-U),
2-sinf torli (H05V-R)
yoki 5-sinf moslashuvchan (H05V-K) o'tkazgich
acc. IEC 60228 ga muvofiq

Izolyatsiya

PVX
(Izolyatsiya rangi: qora, jigarrang, sariq, ko'k, qizil, yashil/sariq, kulrang, to'q sariq, oq ham mavjud.)

1_

2_

3_


4.Modellar va parametrlar

Model

Nominal kuchlanish

Oddiy maydon (mm)

Umumiy diametri (mm)

Og'irligi (KG)

Supero'tkazuvchilar qarshilik darajasi 20 santigratdan oshmasligi kerak (Ō/km)

Tel yadro tuzilishi
Yadrolar/diametrlar (mm)

BV

300/500V

0.5

2.4

8.5

36.0

1/0.80

BV

300/500V

0.75(A)

2.6

11.1

24.5

1/0.97

BV

300/500V

0.75(B)

2.8

12.0

24.5

7/0.37

BV

300/500V

1.0(A)

2.8

13.9

18.1

1/1.13

BV

300/500V

1.0(B)

3.0

15.0

18.1

7/0.43

BV

450/750V

1.5(A)

3.3

20.3

12.1

1/1.38

BV

450/750V

1.5(B)

3.5

21.6

12.1

7/0.52

BV

450/750V

2.5(A)

3.9

31.6

7.41

1/1.78

BV

450/750V

2.5(B)

4.2

34.8

7.41

7/0.68

BV

450/750V

4(A)

4.4

47.1

4.61

1/2.76

BV

450/750V

4(B)

4.8

50.3

4.61

7/1.04

BV

450/750V

6(A)

4.9

67.0

3.08

7/1.35

BV

450/750V

6(B)

5.4

71.2

3.08

7/1.70

BV

450/750V

10

7.0

119

1.83

7/2.14

BV

450/750V

16

8.0

179

1.15

7/2.52

BV

450/750V

25

10

281

0.727

19/7.18

BV

450/750V

35

11.5

381

0.524

19/2.14

BVR

450/750V

2.5

4.2

34.7

7.41

19/0.41

BVR

450/750V

4

4.8

51.4

4.61

19/0.52

BVR

450/750V

6

5.6

73.6

3.08

19/0.64

BVR

450/750V

10

7.6

129

1.83

49/0.52

BVR

450/750V

16

8.8

186

1.15

49/0.64

BVR

450/750V

25

11.0

306

0.727

98/0.58

BVR

450/750V

35

12.5

403

0.524

133/0.8

BVR

450/750V

50

14.5

553

0.387

133/0.68

BVR

450/750V

70

16.5

764

0.268

189/0.68


Issiq teglar: h05v - u kabel
