1.Ilova (Himoyalangan boshqaruv kabellari):
450/750V dan past bo'lgan o'zgaruvchan tokning nominal kuchlanishi uchun qo'llaniladigan boshqaruv, uchuvchi va himoya sxemasi signal sifatida, elektr asboblarning yo'nalishini uzatish liniyalari va avtomatik boshqaruv tizimi.
2.Standartlar(Ekranlangan boshqaruv kabellari):
Tekshirish kabeli GB9330-1988, IEC, DIN, BS standartiga muvofiq ishlab chiqarilishi mumkin va zavod boshqa standartlarga muvofiq kabellarni ham ishlab chiqishi mumkin.

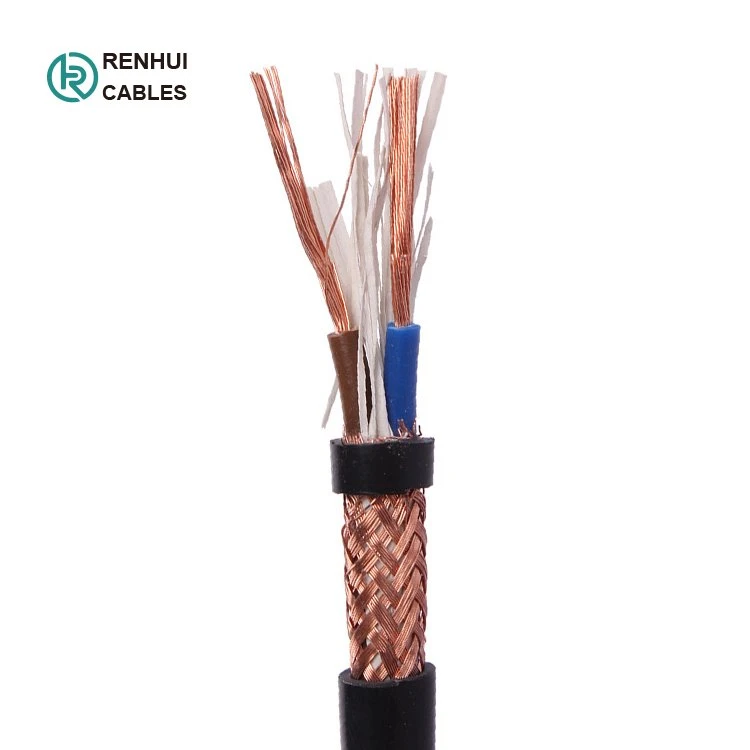

3.Tavsiflar(Ekranlangan boshqaruv kabellari):
Supero'tkazuvchilar: moslashuvchan mis o'tkazgich
Izolyatsiya: PVX
Ekran: Mis simli miya ekrani
Qoplama: PVX
4.Operatsion xususiyatlari(Ekranlangan boshqaruv kabellari):
Nominal kuchlanish: U0 / U 450 / 750V.
Supero'tkazuvchilar sim yadrosi uzoq muddatli ish harorati 70 ºC, 95 ºC ikki turdagi kabel yotqizish harorati 0 ºC dan past bo'lmagan.
Tavsiya etilgan kabelning egilish radiusi quyidagicha:
Zirhli bo'lmagan kabel simi diametrining 6 barobaridan kam bo'lmasligi kerak;
Zirh yoki mis lenta bilan himoyalangan kabel, simi diametrining 12 barobaridan kam bo'lmasligi kerak;
Ekranlangan moslashuvchan simi, simi diametridan 6 barobar kam bo'lmagan
5.Kabel parametrlari(Ekranlangan boshqaruv kabellari):
Yadro raqami × | Supero'tkazuvchilardagi bitta simning maksimal diametri | Izolyatsiya qalinligi | ekranning bitta simli diametri | Tashqi ko'ylagi qalinligi | O'rtacha tashqi diametri yoki profilning yuqori o'lchami chegarasi | 20 daraja Maksimal Supero'tkazuvchilar qarshiligi Ō / km | 70 daraja minimal izolyatsiya qarshiligi | ||
Eng past chegara | Eng yuqori chegara | Mis yadrosi | Qalaylangan mis yadrosi | ||||||
2×0.08 | 0.13 | 0.4 | 0.10 | 0.4 | 3.2 | 4.2 | 247 | 264 | 0.018 |
2.4×3.5 | 2.9×4.2 | ||||||||
2×0.12 | 0.16 | 0.4 | 0.10 | 0.6 | 3.7 | 4.9 | 156 | 163 | 0.016 |
2.8×4.0 | 3.4×4.9 | ||||||||
2×0.2 | 0.16 | 0.4 | 0.10 | 0.6 | 4.1 | 5.3 | 92.3 | 95.0 | 0.013 |
3.0×4.4 | 3.6×5.3 | ||||||||
2×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 4.8 | 6.2 | 69.2 | 71.2 | 0.014 |
3.5×5.1 | 4.2×6.2 | ||||||||
2×0.4 | 0.16 | 0.5 | 0.15 | 0.6 | 5.1 | 6.6 | 48.2 | 49.6 | 0.013 |
3.6×5.4 | 4.4×6.6 | ||||||||
2×0.5 | 0.21 | 0.5 | 0.15 | 0.6 | 5.3 | 6.8 | 39.0 | 40.1 | 0.012 |
3.7×5.6 | 4.5×6.8 | ||||||||
2×0.75 | 0.21 | 0.5 | 0.15 | 0.6 | 5.8 | 7.4 | 26.0 | 26.7 | 0.010 |
4.0×6.1 | 4.8×7.4 | ||||||||
2×1.0 | 0.21 | 0.6 | 0.15 | 0.6 | 6.4 | 8.2 | 19.5 | 20.0 | 0.010 |
4.3×6.7 | 5.2×8.3 | ||||||||
2×1.5 | 0.26 | 0.6 | 0.15 | 0.8 | 7.3 | 9.2 | 13.3 | 13.7 | 0.009 |
4.9×7.6 | 6.0×9.3 | ||||||||
3×0.12 | 0.16 | 0.4 | 0.10 | 0.6 | 3.9 | 5.1 | 158 | 163 | 0.016 |
3×0.2 | 0.16 | 0.4 | 0.15 | 0.6 | 4.5 | 5.8 | 92.3 | 95.0 | 0.013 |
3×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 5.1 | 6.5 | 69.2 | 71.2 | 0.014 |
3×0.4 | 0.16 | 0.5 | 0.15 | 0.6 | 5.4 | 6.9 | 48.2 | 49.6 | 0.013 |
3×0.5 | 0.21 | 0.5 | 0.15 | 0.6 | 5.6 | 7.1 | 39.0 | 40.1 | 0.012 |
3×0.75 | 0.21 | 0.5 | 0.15 | 0.6 | 6.1 | 7.8 | 26.0 | 26.7 | 0.010 |
3×1.0 | 0.21 | 0.6 | 0.15 | 0.8 | 7.2 | 9.1 | 19.5 | 20.0 | 0.010 |
3×1.5 | 0.26 | 0.6 | 0.20 | 0.8 | 8.0 | 10.0 | 13.3 | 13.7 | 0.009 |
4×0.12 | 0.16 | 0.4 | 0.15 | 0.6 | 4.5 | 5.8 | 158 | 163 | 0.016 |
4×0.2 | 0.16 | 0.4 | 0.15 | 0.6 | 4.9 | 6.2 | 92.3 | 95.0 | 0.013 |
4×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 5.5 | 7.0 | 69.2 | 71.2 | 0.014 |
4×0.4 | 0.16 | 0.5 | 0.15 | 0.6 | 5.9 | 7.5 | 48.2 | 49.6 | 0.013 |
5×0.12 | 0.16 | 0.4 | 0.15 | 0.6 | 4.8 | 6.2 | 158 | 163 | 0.016 |
5×0.2 | 0.16 | 0.4 | 0.15 | 0.6 | 5.3 | 6.7 | 92.3 | 95.0 | 0.013 |
5×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 6.0 | 7.6 | 69.2 | 71.2 | 0.014 |
5×0.4 | 0.16 | 0.5 | 0.15 | 0.6 | 6.4 | 8.1 | 48.2 | 49.6 | 0.013 |
6.Paket: Yog'och barabanlarni eksport qilish (qalqonlangan boshqaruv kabellari):
