1.Mahsulot nomi: cu/xlpe/pvc/swa/pvc
Cu/XLPE/PVX/SWA/PVC quvvat kabeli ichki va tashqi makonlarda kabel kanallarida yoki to'g'ridan-to'g'ri erga qattiq o'rnatish uchun ishlatilishi mumkin.
Po'lat simli zirhli kabel (SWA kabeli) er osti inshootlari uchun qabul qilingan standart bo'lib, elektr tarmog'ida foydalanish uchun mo'ljallangan.
Ushbu kabellar mexanik himoya bilan ta'minlangan va shuning uchun tashqi foydalanish, to'g'ridan-to'g'ri ko'mish va to'satdan mexanik kuchlanish kutilgan joylar uchun javob beradi.
 |
 |
 |

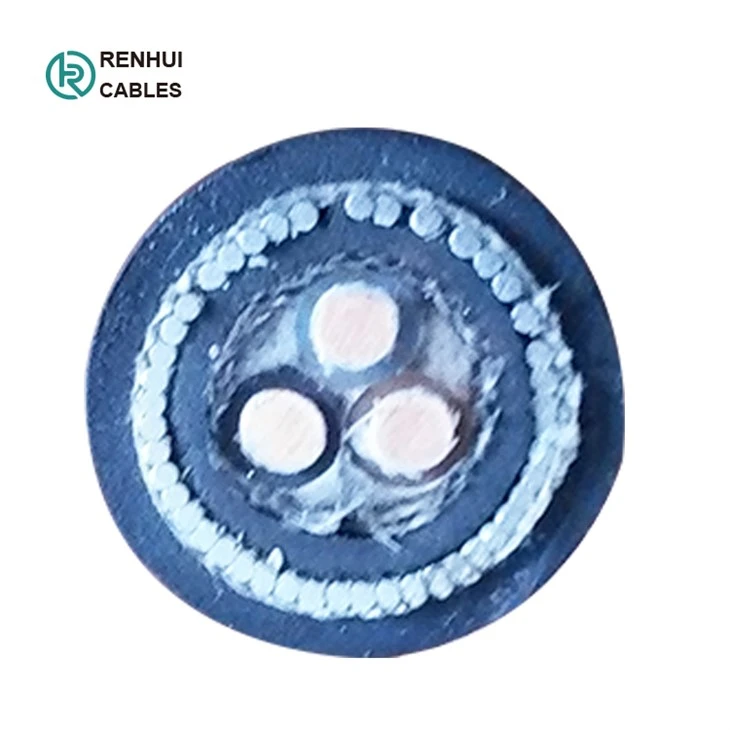

2.Cu/xlpe/pvc/swa/pvc chizmasi
|
 |
 |
 |
3.Kabel detallari:cu/xlpe/pvc/swa/pvc
|
Supero'tkazuvchilar material: |
Mis, IEC60228 |
|
Dirijyor: |
Qattiq yoki torli mis o'tkazgich |
|
Izolyatsiya: |
XLPE (oʻzaro bogʻlangan polietilen), IEC60502-1 |
|
Qurol turi: |
Galvanizli po'lat simlar zirhli |
|
Tashqi qoplama: |
PVC, IEC60502-1 |
|
Ichki qoplama: |
PVC, IEC60502-1 |
|
Qopqoq rangi: |
Qora |
|
Qo'rg'oshinsiz: |
Ha |
|
Nominal kuchlanish Uo/U (Um): |
600/1000V |
|
O'rnatish harorati: |
Minimal: 0 daraja c Maksimal: 60 daraja |
|
O'rnatish turi: |
Ochiq havoda to'g'ridan-to'g'ri dafn qilish |
|
Ishlash harorati: |
Maksimal: 90 daraja |
|
Qisqa tutashuvdagi maksimal Supero'tkazuvchilar harorati: |
250 daraja |
|
Olovga chidamli: |
IEC 60332-1 |
4.Cu/xlpe/pvc/swa/pvc ma'lumotlar varaqasi
|
Ko'ndalang kesimi mm2 |
Tortish mm |
Taxminan vazni kg/km |
Taxminan umumiy diametri |
Bez hajmi mm |
Yagona qisqich |
Nom. Maks. DC-qarshilik o'tkazgich 20 daraja ohm / km |
Joriy reyting to'g'ridan-to'g'ri kuchaytirgichni qo'ydi |
|
2 asosiy SWA: Jigarrang va Moviy |
|||||||
|
2 x 1.5 |
7/0.53 |
243 |
11.06 |
16 |
0.5 |
12.10 |
38 |
|
2 x 2.5 |
7/0.67 |
355 |
12.4 |
20s |
0.5 |
7.41 |
49 |
|
2 x 4.0 |
7/0.85 |
393 |
13.38 |
20s |
0.6 |
4.61 |
65 |
|
2 x 6.0 |
7/1.04 |
450 |
14.38 |
20 |
0.6 |
3.08 |
81 |
|
2 x 10 |
7/1.35 |
590 |
16.18 |
20 |
0.7 |
1.83 |
109 |
|
2 x 16 |
7/1.70 |
897 |
19.06 |
25 |
0.8 |
1.15 |
141 |
|
2 x 25 |
7/2.14 |
1,050 |
20.0 |
25 |
0.8 |
0.727 |
183 |
|
2 x 35 |
7/2.52 |
1,400 |
23.2 |
32 |
0.9 |
0.524 |
219 |
|
2 x 50 |
19/1.78 |
1,750 |
25.1 |
32 |
1.0 |
0.387 |
259 |
|
2 x 70 |
19/2.14 |
2,200 |
28.5 |
32 |
1.2 |
0.268 |
317 |
|
2 x 95 |
19/2.52 |
3,100 |
32.9 |
32 |
1.4 |
0.193 |
381 |
|
2 x 120 |
37/2.03 |
3,700 |
35.1 |
40 |
1.4 |
0.153 |
433 |
|
2 x 150 |
37/2.25 |
4,350 |
37.8 |
40 |
1.6 |
0.124 |
485 |
|
2 x 185 |
37/2.52 |
5,700 |
44.7 |
50s |
1.8 |
0.0991 |
547 |
|
2 x 240 |
61/2.25 |
7,280 |
49.0 |
50 |
2.0 |
0.0754 |
632 |
|
2 x 300 |
61/2.52 |
8,750 |
53.4 |
63s |
2.0 |
0.0601 |
708 |
|
2 x 400 |
61/2.85 |
10,700 |
59.0 |
63s |
TC9 |
0.0470 |
- |
|
3 yadroli SWA: jigarrang, qora va kulrang |
|||||||
|
3 x 1.5 |
7/0.53 |
341 |
12.17 |
16 |
0.5 |
12.10 |
32 |
|
3 x 2.5 |
7/0.67 |
374 |
13.55 |
20s |
0.6 |
7.41 |
42 |
|
3 x 4.0 |
7/0.85 |
458 |
14.68 |
20s |
0.6 |
4.61 |
55 |
|
3 x 6.0 |
7/1.04 |
558 |
15.87 |
20 |
0.7 |
3.08 |
69 |
|
3 x 10 |
7/1.35 |
841 |
18.63 |
20 |
0.8 |
1.83 |
92 |
|
3 x 16 |
7/1.70 |
1,070 |
20.78 |
25 |
0.9 |
1.15 |
119 |
|
3 x 25 |
7/2.14 |
1,625 |
24.9 |
32 |
1.0 |
0.727 |
152 |
|
3 x 35 |
7/2.52 |
1,950 |
27.8 |
32 |
1.1 |
0.524 |
182 |
|
3 x 50 |
19/1.78 |
2,300 |
28.0 |
32 |
1.2 |
0.387 |
217 |
|
3 x 70 |
19/2.14 |
3,075 |
32.2 |
32 |
1.4 |
0.268 |
266 |
|
3 x 95 |
19/2.52 |
4,225 |
37.0 |
40 |
1.6 |
0.193 |
319 |
|
3 x 120 |
37/2.03 |
5,100 |
40.2 |
50s |
1.8 |
0.153 |
363 |
|
3 x 150 |
37/2.25 |
6,510 |
45.3 |
50s |
1.8 |
0.124 |
406 |
|
3 x 185 |
37/2.52 |
7,845 |
49.5 |
50 |
2.0 |
0.0991 |
458 |
|
3 x 240 |
61/2.25 |
9,900 |
55.6 |
63s |
TC9 |
0.0754 |
529 |
|
3 x 300 |
61/2.52 |
13,560 |
59.6 |
63 |
TC10 |
0.0601 |
592 |
|
3 x 400 |
61/2.85 |
14,720 |
65.8 |
75s |
TC11 |
0.0470 |
667 |
|
4 yadroli SWA: Jigarrang, Qora, Kulrang va Moviy |
|||||||
|
4 x 1.5 |
7/0.53 |
351 |
12.88 |
20s |
0.5 |
12.10 |
32 |
|
4 x 2.5 |
7/0.67 |
429 |
14.43 |
20s |
0.6 |
7.41 |
42 |
|
4 x 4.0 |
7/0.85 |
538 |
16.87 |
20 |
0.6 |
4.61 |
55 |
|
4 x 6.0 |
7/1.04 |
670 |
17.87 |
20 |
0.7 |
3.08 |
69 |
|
4 x 10 |
7/1.35 |
998 |
20.1 |
25 |
0.8 |
1.83 |
92 |
|
4 x 16 |
7/1.70 |
1,272 |
22.4 |
25 |
0.9 |
1.15 |
119 |
|
4 x 25 |
7/2.14 |
1,940 |
27.0 |
32 |
1.0 |
0.727 |
152 |
|
4 x 35 |
7/2.52 |
2,390 |
30.1 |
32 |
1.2 |
0.524 |
182 |
|
4 x 50 |
19/1.78 |
2,925 |
31.5 |
32 |
1.4 |
0.387 |
217 |
|
4 x 70 |
19/2.14 |
4,200 |
37.4 |
40 |
1.6 |
0.268 |
266 |
|
4 x 95 |
19/2.52 |
5,355 |
40.9 |
50s |
1.8 |
0.193 |
319 |
|
4 x 120 |
37/2.03 |
6,925 |
46.6 |
50 |
2.0 |
0.153 |
363 |
|
4 x 150 |
37/2.25 |
8,200 |
50.2 |
50s |
2.0 |
0.124 |
406 |
|
4 x 185 |
37/2.52 |
9,975 |
55.8 |
63s |
TC9 |
0.0991 |
458 |
|
4 x 240 |
61/2.52 |
12,700 |
62.5 |
63 |
TC10 |
0.0754 |
529 |
|
4 x 300 |
61/2.85 |
15,275 |
67.4 |
75s |
TC11 |
0.0601 |
592 |
|
4 x 400 |
61/3.20 |
19,875 |
77.0 |
75 |
TC12 |
0.0470 |
667 |
|
5 yadroli SWA: jigarrang, qora, kulrang, ko'k, sariq va yashil |
|||||||
|
5 x 1.5 |
7/0.53 |
395 |
13.72 |
20s |
0.6 |
12.10 |
32 |
|
5 x 2.5 |
7/0.67 |
497 |
15.46 |
20s |
0.6 |
7.41 |
42 |
|
5 x 4.0 |
7/0.85 |
674 |
17.38 |
20 |
0.7 |
4.61 |
55 |
|
5 x 6.0 |
7/1.04 |
868 |
19.05 |
20 |
0.8 |
3.08 |
69 |
|
5 x 10 |
7/1.35 |
1,197 |
22.06 |
25 |
0.9 |
1.83 |
92 |
|
5 x 16 |
7/1.70 |
1,780 |
24.14 |
25 |
1.1 |
1.15 |
119 |
|
5 x 25 |
7/2.14 |
2,435 |
28.4 |
32 |
1.2 |
0.727 |
152 |
|
5 x 35 |
7/2.52 |
2,800 |
33 |
40 |
1.4 |
0.524 |
182 |
|
5 x 50 |
19/1.78 |
3,850 |
38.0 |
40 |
1.6 |
0.387 |
217 |
|
5 x 70 |
19/2.14 |
5,100 |
42.9 |
50s |
1.8 |
0.268 |
266 |
|
5 x 95 |
19/2.52 |
7,700 |
52.1 |
50 |
TC9 |
0.193 |
319 |
|
7 yadroli SWA: qora bosma bilan oq raqamlangan yadrolar |
|||||||
|
7 x 1.5 |
7/0.53 |
449 |
14.65 |
20 |
0.6 |
12.10 |
32 |
|
7 x 2.5 |
7/0.67 |
564 |
16.53 |
20 |
0.8 |
7.41 |
42 |
|
7 x 4.0 |
7/0.85 |
824 |
18.96 |
25 |
0.8 |
4.61 |
55 |
|
7 x 6.0 |
7/1.04 |
1,105 |
21.6 |
25 |
0.9 |
3.08 |
69 |
|
7 x 10 |
7/1.35 |
1,610 |
25.3 |
25 |
1 |
1.83 |
98 |
|
7 x 16 |
7/1.70 |
2,225 |
28.45 |
32 |
1.2 |
1.15 |
119 |
|
7 x 25 |
7/2.14 |
3,880 |
38.4 |
40 |
1.4 |
0.727 |
152 |
|
12 yadroli SWA: qora bosma bilan oq raqamlangan yadrolar |
|||||||
|
12 x 1.5 |
7/0.53 |
756 |
18.9 |
25 |
0.8 |
12.10 |
32 |
|
12 x 2.5 |
7/0.67 |
971 |
21.76 |
25 |
0.9 |
7.41 |
42 |
|
12 x 4.0 |
7/0.85 |
1,403 |
25.97 |
32 |
1.0 |
4.61 |
55 |
|
12 x 6.0 |
7/1.04 |
1,910 |
28.1 |
32 |
1.2 |
3.08 |
69 |
|
12 x 10 |
7/1.35 |
2,590 |
32.4 |
32 |
1.4 |
1.83 |
98 |
|
19 Yadro SWA: Qora bosma bilan oq raqamlangan yadrolar |
|||||||
|
19 x 1.5 |
7/0.53 |
992 |
21.99 |
25 |
0.9 |
12.10 |
32 |
|
19 x 2.5 |
7/0.67 |
1,447 |
25.63 |
25 |
1.0 |
7.41 |
42 |
|
19 x 4.0 |
7/0.85 |
1,870 |
28.46 |
32 |
1.1 |
4.61 |
55 |
5.Paket: Yog'och barabanlarni eksport qilish.
