1.Ilova:
H07V-K kabeli elektr motorlar va transformatorlarning ichki simlari, shuningdek, boshqa elektr jihozlari va yoritish ilovalari uchun ishlatiladi. U o'lchash, tartibga solish va nazorat qilish uchun elektron qurilmalarda va ulardan foydalanish mumkin. Kabellar quvurlarni yotqizish, sirt simlari va o'tkazgichlarni o'rnatish uchun ham idealdir. HD 516 ga muvofiq spetsifikatsiyalar tegishli maxsus ilovalar uchun amal qiladi.
H07V-U kabeli asboblarning ichki qismiga o'rnatish uchun, shuningdek, yorug'lik, quruq xonalarda, ishlab chiqarish ob'ektlarida, kalit va distribyutor platalarda, quvurlarda, gipslarning ostiga va sirtiga o'rnatish uchun mo'ljallangan.
H07V-R kabeli ichki makonlarda, kabel kanallarida va sanoat korxonalarida yoki kommutatsiya stantsiyalarida, yer osti o'rnatish uchun afzaldir. Kommutatorlar va distribyutor platalarida yoki ko'p simli qalinroq sim kerak bo'lganda foydalanish mumkin. Evropa davlatiga eksport qilish va Evropa ishlab chiqarilgan uskuna simini MRO almashtirish uchun mo'ljallangan elektron va elektr jihozlari va kommutator shkaflarida topilgan.
2.H07V -K -U -R PVX sanoat kabeli 450/750V Qurilish:
|
Supero'tkazuvchilar material: |

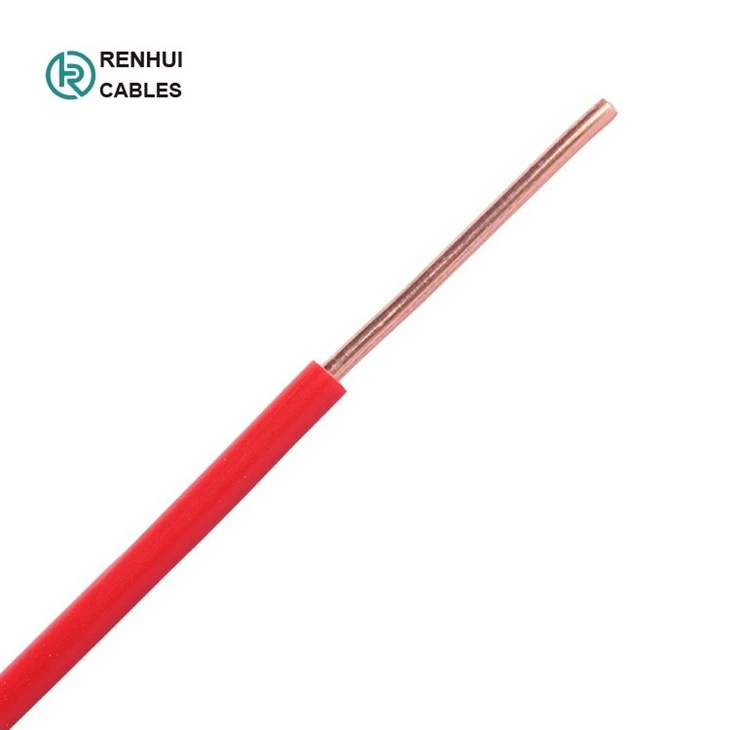

H07V-U qattiq mis sinf 1 dan VDE0295/IEC60228 |
|
Izolyatsiya: |
PVX |
|
|
|
3.H07V-K/ H07V-U/ H07V-R 450/750V Texnik maʼlumotlar:
|
Nominal kuchlanish |
450/750V |
|
Sinov kuchlanishi |
2500V |
|
Egiluvchan egilish radiusi |
12.5 x Ø |
|
Statik egilish radiusi |
12.5 x Ø |
|
Egiluvchan harorat |
-5º C dan ortiqcha 70º C gacha |
|
Statik harorat |
-30º C dan ortiqcha 80º C gacha |
|
Olovga chidamli |
IEC 60332.1 |
|
Izolyatsiyaga qarshilik |
10 MŌ x km |
4.H07V-K PVX elektr sim450/750V Texnik xususiyatlari:
|
AWG |
Yadrolar soni x |
Nominal |
Nominal |
Nominal vazn |
|
16(30/30) |
1 x 1.5 |
3.1 |
14.4 |
20 |
|
14(50/30) |
1 x 2.5 |
3.6 |
24 |
31 |
|
12(56/28) |
1 x 4 |
4.3 |
38 |
48 |
|
10(84/28) |
1 x 6 |
4.9 |
58 |
69 |
|
8(80/26) |
1 x 10 |
6.4 |
96 |
121 |
|
6(128/26) |
1 x 16 |
8.1 |
154 |
211 |
|
4 (200/26) |
1 x 25 |
9.8 |
240 |
303 |
|
2 (280/26) |
1 x 35 |
11.1 |
336 |
417 |
|
1 (400/26) |
1 x 50 |
13.1 |
480 |
539 |
|
2/0 (356/24) |
1 x 70 |
15.5 |
672 |
730 |
|
3/0 (485/24) |
1 x 95 |
17.2 |
912 |
900 |
|
4/0 (614/24) |
1 x 120 |
19.7 |
1152 |
1135 |
|
300 MCM (765/24) |
1 x 150 |
21.3 |
1440 |
1410 |
|
350 MCM (944/24) |
1 x 185 |
23.4 |
1776 |
1845 |
|
500MCM(1225/24) |
1 x 240 |
27.1 |
2304 |
2270 |
5.H07V-U PVX elektr kabeli450/750V Texnik xususiyatlari:
|
AWG |
Yadrolar soni x |
Nominal |
Nominal |
Nominal vazn |
|
20 |
1 x 0.5 |
2.1 |
4.8 |
9 |
|
18 |
1 x 0.75 |
2.2 |
7.2 |
11 |
|
17 |
1 x 1 |
2.4 |
9.6 |
14 |
|
16 |
1 x 1.5 |
2.9 |
14.4 |
21 |
|
14 |
1 x 2.5 |
3.5 |
24 |
33 |
|
12 |
1 x 4 |
3.9 |
38 |
49 |
|
10 |
1 x 6 |
4.5 |
58 |
69 |
|
8 |
1 x 10 |
5.7 |
96 |
115 |
6.H07V-R PVX elektr simli kabel450/750V Texnik xususiyatlari:
|
AWG |
Yadrolar soni x |
Nominal |
Nominal |
Nominal vazn |
|
16(7/24) |
1 x 1.5 |
3 |
14.4 |
23 |
|
14(7/22) |
1 x 2.5 |
3.6 |
24 |
35 |
|
12(7/20) |
1 x 4 |
4.2 |
39 |
51 |
|
10(7/18) |
1 x 6 |
4.7 |
58 |
71 |
|
8(7/16) |
1 x 10 |
6.1 |
96 |
120 |
|
6(7/14) |
1 x 16 |
7.2 |
154 |
170 |
|
4(7/12) |
1 x 25 |
8.4 |
240 |
260 |
|
2(7/10) |
1 x 35 |
9.5 |
336 |
350 |
|
1(19/13) |
1 x 50 |
11.3 |
480 |
480 |
|
2/0(19/11) |
1 x 70 |
12.6 |
672 |
680 |
|
3/0(19/10) |
1 x 95 |
14.7 |
912 |
930 |
|
4/0(37/12) |
1 x 120 |
16.2 |
1152 |
1160 |
|
300MCM(37/11) |
1 x 150 |
18.1 |
1440 |
1430 |
|
350MCM(37/10) |
1 x 185 |
20.2 |
1776 |
1780 |
|
500MCM(61/11) |
1 x 240 |
22.9 |
2304 |
2360 |
|
|
1 x 300 |
24.5 |
2880 |
2940 |
|
|
1 x 400 |
27.5 |
3840 |
3740 |
